| Specifications |
| HARDWARE FEATURES |

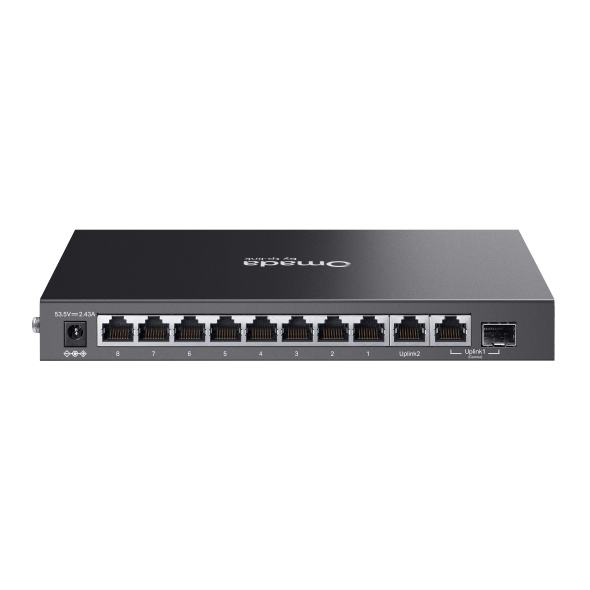

| Interface |
• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at-compliant PoE+)
• 1× 10/100/1000 Mbps RJ45 Port
• 1× Gigabit SFP/RJ45 Combo Port
• Auto-Negotiation/Auto MDI/MDIX |

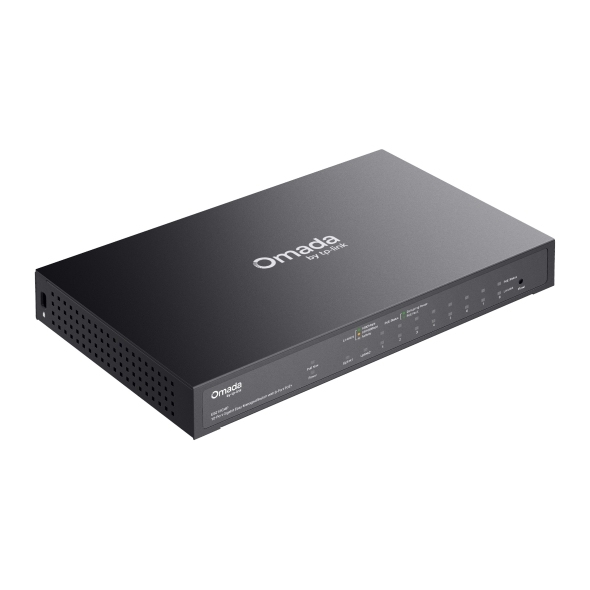

| Fan Quantity |
Fanless |

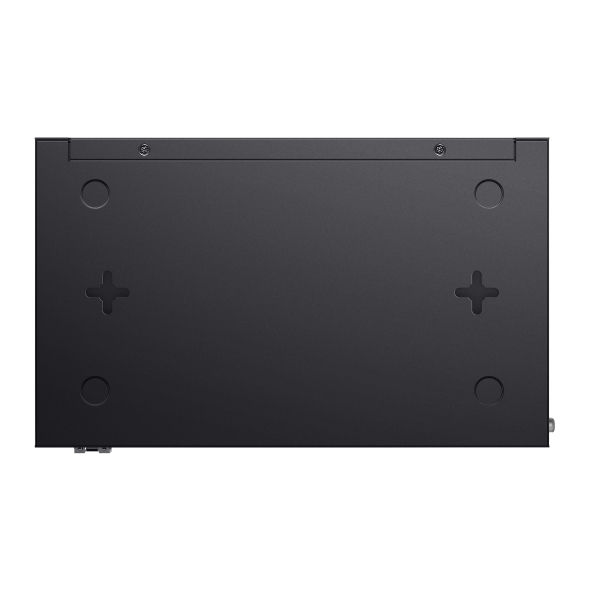

| Installation |
• Desktop
• Wall Mount |
| Physical Security Lock |
√ |
| Power Supply |
AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/2.43A) |
| PoE Ports (RJ45) |
• Standard: 802.3af/at PoE+ compliant
• PoE Ports: 8 ports
• PoE Budget: 123W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) |
8.2×4.9×1.0 in (209×126×26 mm) |
| Surge Protection |
±6kV |
| PERFORMANCE |
| Packet Buffer Memory |
4 Mbit |
| Jumbo Frame |
15 KB |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| MAC Address Table |
8K |
| SOFTWARE FEATURES |
| Quality of Service |
• Port-based/802.1p/DSCP QoS△
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features |
• Link Aggregation
- Static Link Aggregation
- Up to 4 aggregation groups and up to 6 ports per group
• Port Isolation
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
• IEEE 802.3az EEE |
| L2 Multicast |
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave / Report Suppression |
| VLAN |
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method |
Store-And-Forward |
| MANAGEMENT FEATURES |
| Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management |
• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)
• Omada Hardware Controller (Requires built-in version 5.15.20 or later)
• Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features |
• HTTPS/HTTP
• DHCP Client
• Cable Diagnostics
• ONVIF***
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration† |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Content |
• ES210GMP
• Power Adapter
• Power Cord
• Mounting Feet
• Installation Guide |
| Environment |
• Operating Temperature: -5℃~40℃ (23℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
