| Specifications |
| Management Features |
| Omada App |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access |
Yes. Require the use of an Omada controller. |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
| HARDWARE FEATURES |

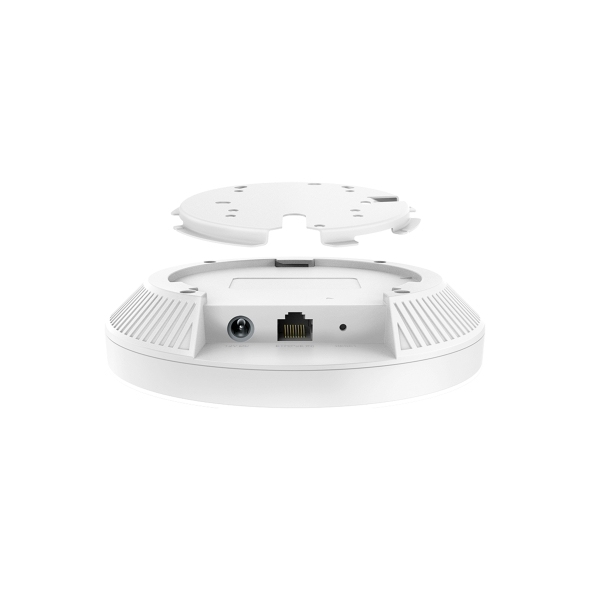

| Interface |
1× Gigabit Ethernet Port |
| Button |
Reset |
| Power Supply |
• 802.3at PoE
• 12V DC (Power Adapter Not Included)
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC)
• 48V Passive PoE |
| Max. Power Consumption |
• EU: 13.5 W
• US: 14.7 W |
| Dimensions ( W x D x H ) |
6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna |
Internal Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi |
| Bluetooth |
V5.2 |

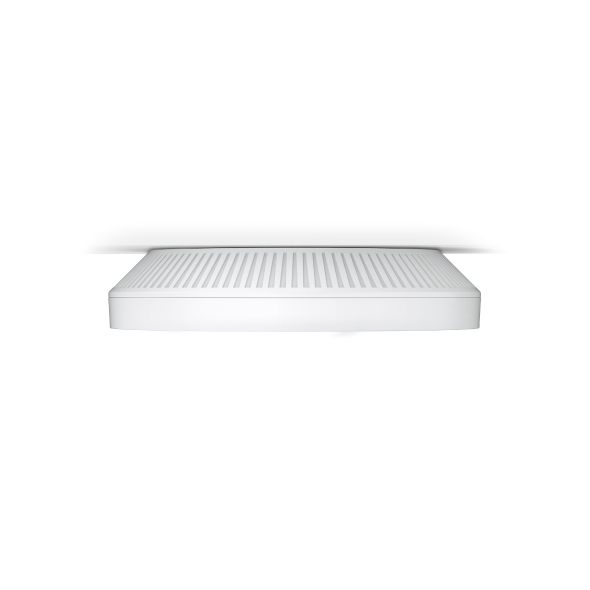

| Mounting |
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting |
| WIRELESS FEATURES |
| Coverage |
1500 ft² (140㎡)* |
| Concurrent Clients |
250+** |
| Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions |
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
• CE:
7-20 dBm(2.4 GHz, EIRP)
7-23 dBm5 GHz, U-NII-1, U-NII-2A, EIRP)
7-30 dBm(5 GHz, U-NII-2C, EIRP)
• FCC:
4-25 dBm (2.4 GHz)
4-25 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3) |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Content |
• EAP653
• Ceiling/Wall Mounting Kits
• Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
