Performance Features:
- Professional design of ceiling speaker system.
- Full-frequency band speaker, covering the entire frequency range.
- Special damping treatment reduces distortion and provides a wide and flat frequency response.
- High sensitivity, excellent directional characteristics. The sound quality is clear, bright and pleasant to the ear.
Technical Specifications:
| Model number |
TD201 |
TD202 |
TD205A |
TD206A |
TD205 |
TD206 |
| Bore diameter of the horn |
5.25"x1 |
6.5"x1 |
4.5"x1 |
5.25"x1 |
4.5"x1 |
5.25"x1 |
| Rated power |
3W |
5W |
3W |
6W |
3W |
6W |
| Maximum power |
5W |
8w |
6W |
10W |
6W |
10W |
| Input voltage |
70/100V |
70/100V |
70/100V |
70/100V |
70/100V |
70/100V |
| Sensitivity |
91dB |
92dB |
91dB |
92dB |
91dB |
92dB |
| Frequency response range |
150-18KHz |
130-18KHz |
250-18KHz |
200-18KHz |
150-18KHz |
102dB |
| Maximum sound pressure level |
98dB |
101dB |
99dB |
102dB |
99dB |
102dB |

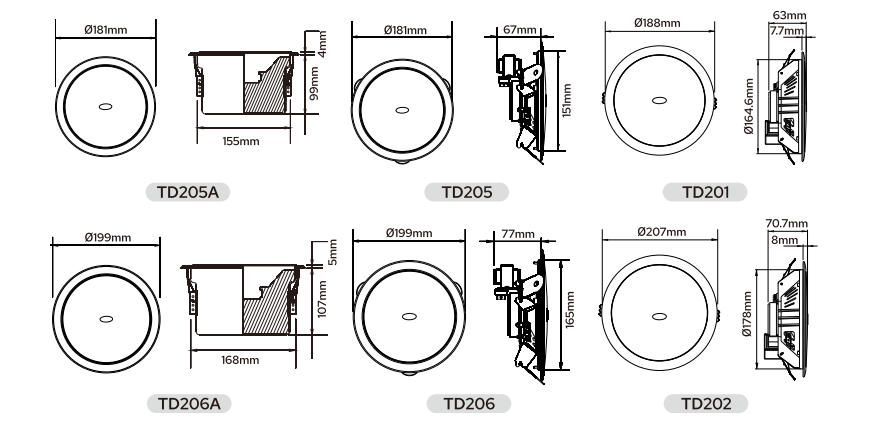

| Installation dimensions |
∅170mm |
∅183mm |
∅161mm |
∅174mm |
∅155mm |
∅170mm |
| Weight |
0.58Kg |
0.69Kg |
1.1Kg |
1.4Kg |
0.7Kg |
0.8Kg |
1. According to the output voltage of the constant pressure amplifier and the markings on the input wiring of the speaker, connect the two input signal lines respectively and tighten the screws.

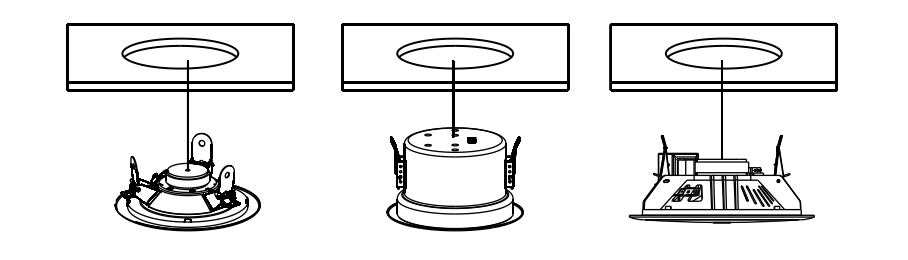

2. After making the holes according to the opening dimensions, place the back of the speaker directly facing the installation holes and press it into the holes.
3. Once the horn is pushed in, the spring mounting plate will automatically lock the horn in place within the mounting hole.
Notes：1.When connecting the input lines, be sure to prevent a short circuit between the two lines.
2. When installing the spring mounting plate and pressing in the horn, please do not place your hands within the movable range of the spring mounting plate to avoid getting injured.
3. Do not install the product near heat sources (such as stoves, radiators, or other heat dissipation devices).
Warning: All modifications and operations made by the user to this product without the permission of the manufacturer are invalid and unauthorized. We assume no responsibility.
