Printing function
Printing method: Line-type thermal printing
Point density: 203 dpi x 203 dpi
Printing speed * : Up to 250 millimeters per second
Paper ejection direction: 'Front ejection or top ejection' - adjustable in both directions
Interface: USB-B, Serial Port
Interface data buffer: 4 KB
Print font
English character Font A: 12×24
English character Font B: 10x24
English character Font C: 9x17
Chinese characters ：24×24
Character size (mm) English character Font A: 1.25 × 3.00 millimeters/Font B: 1.13 x 3.00 millimeters/Font C: 0.88 × 2.13 millimeters/Chinese characters : 3.00 × 3.00 millimeters
Each line of characters 58 mm paper width: Font A: 35/ Font B: 42/ Font C: 46/ Chinese characters: 17;80 mm paper width: Font A: 48/ Font B: 57/ Font C: 64/ Chinese characters: 24
Character types:ANSI (English character set), Japanese, Thai, Simplified Chinese, Traditional Chinese, Korean
QR code:PDF417, QR code, Maxi Code, Data Matrix,
Aztec,Two- dimensional GS1 DataBar,
Composite Symbology
Paper size
Width 80 millimeters (79.5 ± 0.5 millimeters);58 millimeters (57.5 ± 0.5 millimeters)
Diameter: Maximum 83 millimeters
Thickness: 0.048 mm - 0.08 mm
Electrical specifications
Power supply unit (optional): PS-190
Power supply voltage: DC 24V ± 7%
Power consumption: 24.2W ；Operation: 24.2W Storage: 0.8W
Safety standards
Safety standard: CCC
Reliability
Printer mechanism lifespan: 17 million lines
Print head lifespan: 150 kilometers
Blade life: 1.5 million times
Average Fault-Free Time: 360,000 hours
Average number of fault-free print runs: 65 million runs

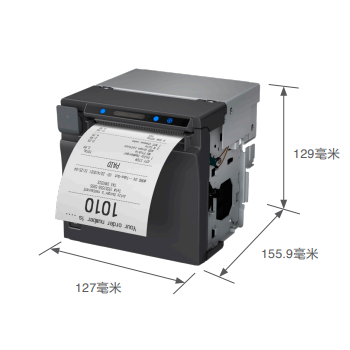

Appearance
Weight (approximate weight): 1.7kg (excluding the roll of paper)
Operating environment
Temperature Operation: 5 - 45 °C/Storage: -20 - 60°C (excluding paper)
Humidity Operation: 10% - 90% RH/Storage: 10% - 90% RH (excluding paper)
