Printing function
Printing method: Line-type thermal printing
Printing speed: Up to 350mm/s; Up to 250mm/s (Paper Enhancement Compatible Version
Point density: 180dpi × 180dpi

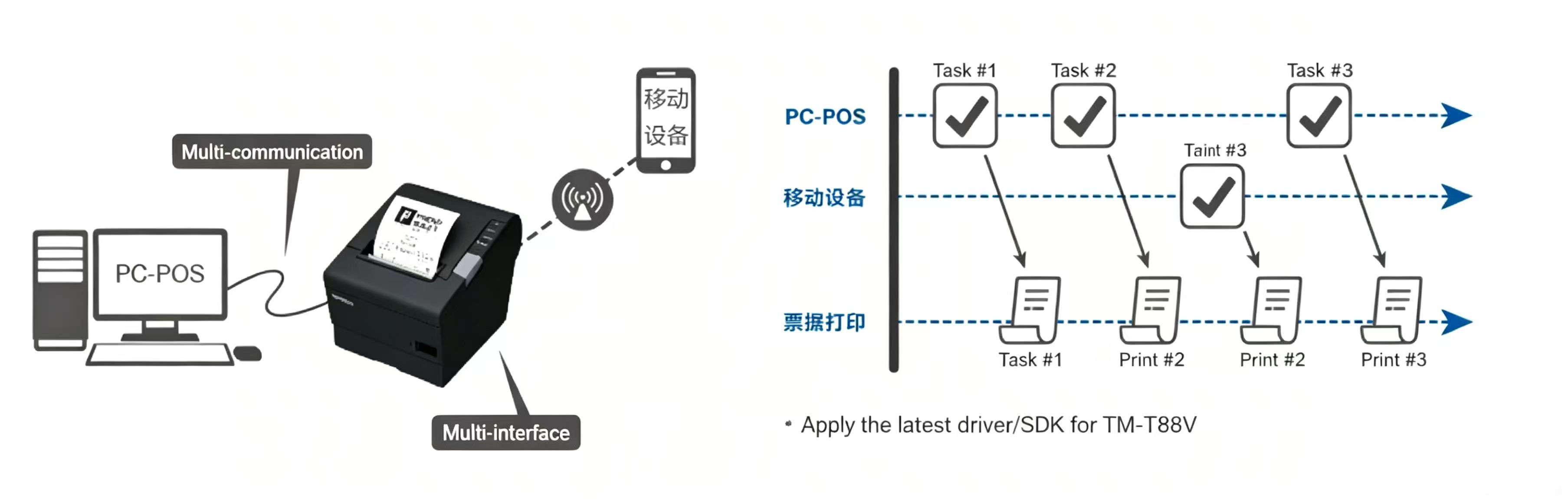

Interface: Built-in USB-A/B + Built-in Ethernet port + UIB (Serial/Parallel port) Supports wireless module and microSD card
Interface data buffer: 4 KB or 45 bytes
Quick pairing function: NFC
Print font
Font: Font A, 12×24; Font B 9×17; Chinese characters 24×24
Character size (mm): Font A 1.41 × 3.39; Font B: 0.99 × 2.40; Chinese characters 3.39 × 3.39
Each line character: 80mm paper width 42/56/21; 58mm paper width: 30/40/15
Character types: 95 Alphanumeric; 18 International; 128×43 Graphic; simplified Chinese
Barcode Specifications: UPC-A, UPC-E, JAN8/EAN 8, JAN13/EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar; QR Code PDF417, QR Code, Maxi Code, Data Matrix, Aztec, Two-dimensional GS1 DataBar, Composite Symbology
Paper size
Width： 80mm (79.5 +/-0.5mm) /58mm (57.5 +/-0.5mm)
Diameter: Maximum 83mm
Thickness: 0.048mm - 0.08mm
Reliability
Printer mechanism lifespan: 20 million lines
Print head lifespan: 200 kilometers; 150 km (Paper Enhancement Compatible Version)
Blade life: 3 million times
MTBF: 360,000 hours
MCBF: 70 million lines
Electrical specifications
Power supply device ：PS-180
Power supply voltage: DC 24V ± 7%
Power consumption : approximately 1.8A (average)

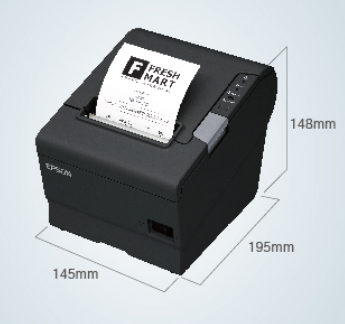

AppearanceOverall dimensions (in millimeters): 145 (Width) × 195 (Depth) × 148 (Height)
Weight (approximate): 1.6kg
Color: ENN8.5 (white), EBCK (black)
Operating environmentTemperature: Operation 5 - 45℃ / Storage -10 - 50℃ (excluding paper)
Humidity: 10 - 90%
Other
D.K.D Function: Dual Drive
Paper level sensor: Installed
Safety standard: CCC

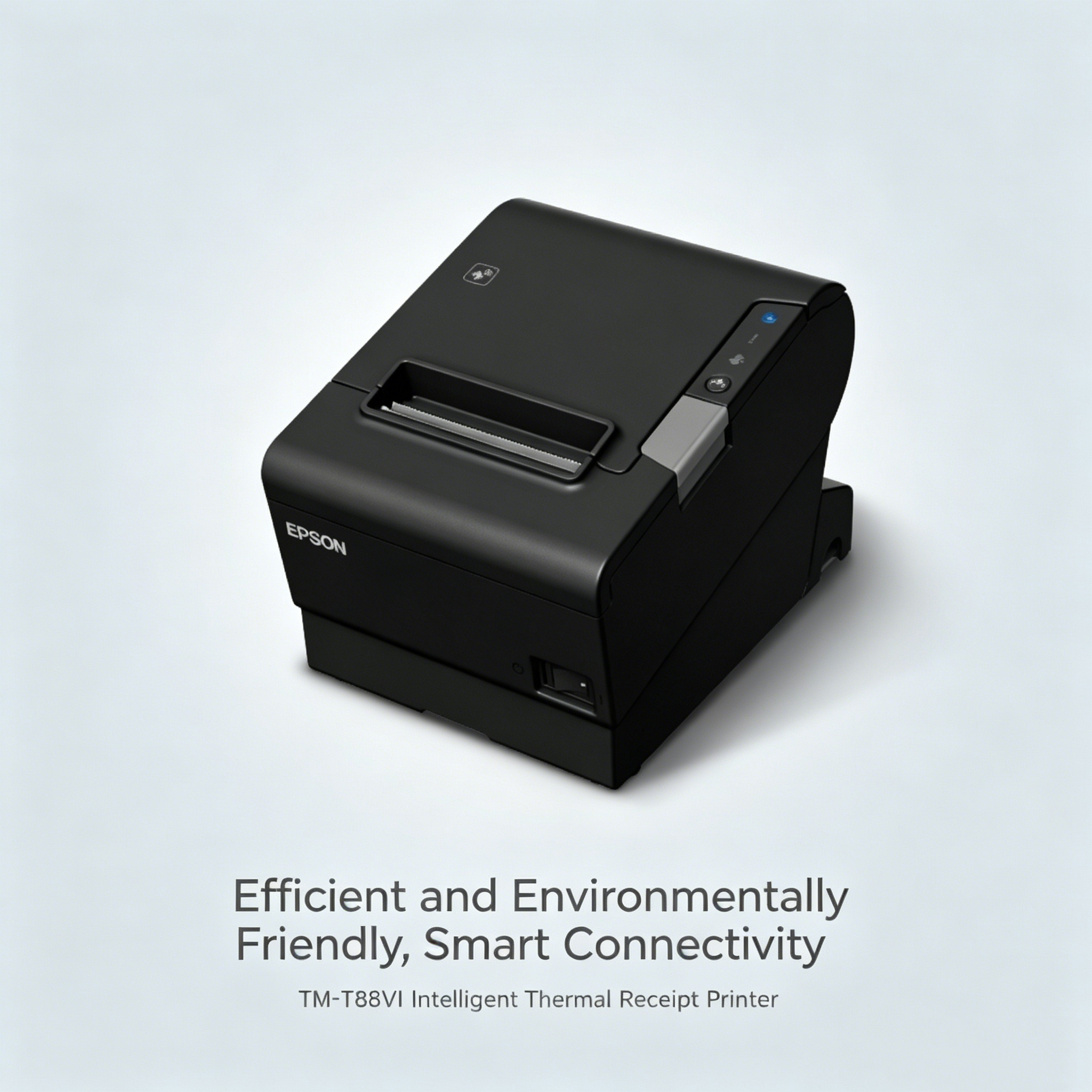

Epson TM-T88VI thermal receipt printer built-in USB and LAN Ethernet port. It supports network printing with WiFi router. Bluetooth function requires extra external bluetooth adapter, not built-in standard.
